3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Control Wiring (01/03)
- 2.Control Wiring (02/03)
- 3.Control Wiring (03/03)
Part Code
Part No. & Part Description
Price
Part No. &
Part Description
1129EY
1141AC 1141306167CBolt- Production Date:
08/2016-04/2018
- Require Quantity:
2
- Package Quantity:
1
1141AC 1141306207CBolt- Production Date:
08/2016-04/2018
- Require Quantity:
2
- Package Quantity:
1
91951T

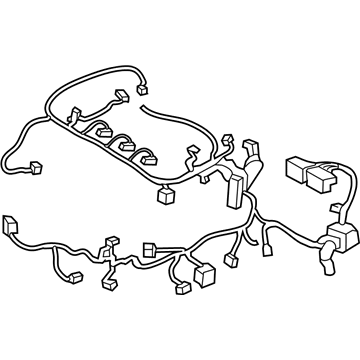

91421A7010Wiring Assy-Control- Fit Note:
AMS - W/O MICOM
EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
EXTERNAL CONTROL COMPRESSOR - CLUTCH W/ OIL-SEPARATOR
FR COOLER - DUAL FULL AUTO A/CON
IMMOBILIZER
SMART KEY-FR DR
- Production Date:
08/2016-12/2016
- Fitting Vehicle Options:
[1.6L - GAMMA]> [DOHC - TCI/GDI]> [Manual T/M - 6 Speed 2WD]
91421A7020Wiring Assy-Control- Fit Note:
AMS - W/O MICOM
EXTERNAL CONTROL COMPRESSOR (W/ OIL-SEPARATOR)
EXTERNAL CONTROL COMPRESSOR - CLUTCH W/ OIL-SEPARATOR
FR COOLER - DUAL FULL AUTO A/CON
IMMOBILIZER
SMART KEY-FR DR
- Production Date:
08/2016-12/2016
- Fitting Vehicle Options:
[1.6L - GAMMA]> [DOHC - TCI/GDI]> [DCT - 7 Speed 2WD]
91400D
91421A7030Wiring Assy-Control 91400D
91421A7040Wiring Assy-Control 91400D
91400D
91400D
91471A7170Wiring Assy-Control 91400D
Genuine Kia Parts, the Right Choice
KiaPartsNow.com offers the wholesale prices for genuine 2017
Kia Forte parts. Parts like Control Wiring are shipped directly from authorized Kia dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 1.6L - GAMMA, 2.0L - NU. Body: Coupe - 2Door 5P, Sedan - 5Door 5P.
