Kia 940013W015 Instrument Cluster Assembly

2010-2013 Kia Sportage

Customer Questions & Expert Answers (3)

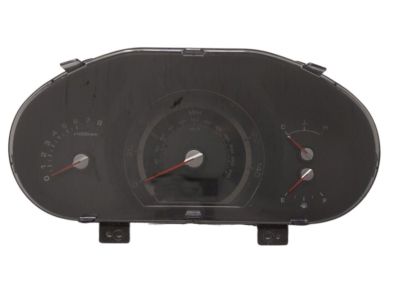

940013W015 Kia Instrument Cluster Assembly Product Photo 1 of 4
  • Part Description
    Cluster Assembly-Instrument
  • Part Code
    94002G
  • Manufacturer
    Kia
Make sure this part fits
$958.59 MSRP: $1413.85
You Save: $455.26 (33%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Specifications
  • Fitment
  • Q&A
  • Product Specifications

    BrandGenuine Kia
    Part Code94002G
    Manufacturer Part Number940013W015
    Part DescriptionCluster Assembly-Instrument
    Other NamesCluster Assembly, Instrument Cluster
    Item Dimensions15.9 x 12.2 x 12.1 inches
    Item Weight3.30 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerKia
    SKU940013W015
    WarrantyThis genuine Kia part is guaranteed by Kia's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65
  • Vehicle Fitment

    Year Make Model Trim & Engine Important vehicle option details
    2010-2013 Kia Sportage2.0L - Theta 2, 2.4L - Theta 2Wagon - 5Door 5P
  • Customer Questions & Expert Answers

    Q:
    I want to confirm that this is the proper part for this vin number before i order Posted by KiaPartsNow Specialist
    A:
    You can Select Your Vehicle to check if 940013W015 fits your vehicle.
    Posted by KiaPartsNow Specialist
    Installation and Repair Tips
    Q:
    How to remove and install the instrument cluster on Kia Sportage? Posted by Customer
    A:
    Remove the instrument cluster bezel. Detach the instrument cluster from the dash by removing the four mounting screws. Pull out the cluster and disconnect the electrical connectors from the backside by accessing it and removing the connectors. Installation is the reverse of removal.
    Posted by KiaPartsNow Specialist
    Q:
    What challenges do home mechanics encounter when removing the Instrument Cluster, and what steps should they follow to reassemble it successfully on Kia Sportage? Posted by Customer
    A:
    Working on this task at home proves hard because mechanics need time to find hidden fasteners, work around tough joint corners, and label and detach many electrical parts before they can start. For people familiar with fixing things on their own, it is best to do this job. Write down what you see as you take apart the instrument panel so that you can easily put everything back correctly. Taking both front seats out during this job is best for your safety and convenience - but you can skip it if you want. First, detach the battery cable from the negative terminal. After that, take off the trim caps on both A-pillar panels; unscrew the retaining screws on the left and right panels. Separate the instrument panel end covers, instrument cluster trim panel, knee bolster trim panel, center trim panel, passenger's side center lower cover, and glove box one at a time. Take off first the steering column covers, then the driver's side airbag, and finally the steering wheel. Move on by unplugging and taking off these parts: the instrument panel, clock face, dashboard music system, and heater/air conditioner switches. Pull the passenger-side airbag wire off, then unlatch the nut inside the instrument panel opening, loosen the bolts from under each roof pillar, and take out the instrument panel's end bolts and glove box opening bolts. Unplug all wiring that runs from the instrument panel inside to the firewall behind it. Have someone help you pull out the instrument panel. Put it back on later, following this same process in reverse.
    Posted by KiaPartsNow Specialist
    See Complete Installation and Repair Tips

Genuine Kia Part 940013W015, the Right Choice

For assured reliability, buy Kia part # 940013W015 Instrument Cluster Assembly. Also known as Instrument Cluster, Speedometer. They are produced at the official Kia factory to ensure durability and precise fit. These components undergo rigorous quality control tests to remove any defects. This will fit 2010-2013 Sportage.

KiaPartsNow.com is a major distributor of genuine Kia parts and accessories including 940013W015 Instrument Cluster Assembly. Our site supplies OEM parts you can trust. We stock a wide range of genuine OEM parts available at reasonable prices. Besides, we have simple returns and swift delivery to ensure a seamless shopping experience.
