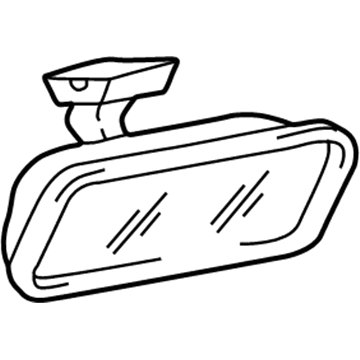

Kia 851014A100 Rear View Inside Mirror Assembly

Remove the mirror trim panel, then disconnect the electrical connector and remove the mounting fasteners to take out the mirror. For installation, follow the reverse order of removal.

Most electric side view mirrors use two motors to move the glass; one for up and down adjustments and one for left-right adjustments. The control switch has a selector portion that sends voltage to the left or right side mirror. With the ignition ON but the engine OFF, roll down the windows and operate the mirror control switch through all functions (left-right and up-down) for both the left and right side mirrors. Listen carefully for the sound of the electric motors running in the mirrors. If the motors can be heard but the mirror glass doesn't move, there's a problem with the drive mechanism inside the mirror, requiring removal and disassembly to locate the issue. If the mirrors do not operate and no sound comes from them, check the fuse. If the fuse is OK, remove the mirror control switch from the dashboard and have the switch continuity checked by a dealership service department or other qualified auto repair facility. Test the ground connections and check the wiring diagrams for guidance. If the mirror still doesn't work, remove it and check the wires for voltage. If there's no voltage in each switch position, check the circuit between the mirror and control switch for opens and shorts. If there's voltage, remove the mirror and test it off the vehicle with jumper wires, replacing it if it fails this test.
