How should you raise and support a Kia Sedona to remove and install rear Coil Springs?

Raise the vehicle and support it securely on jackstands, blocking the front tires to prevent movement. For models from 2005 and earlier, place a floor jack under the axle beam and raise it slightly. Remove the Panhard rod-to-chassis bolt and the shock absorber lower mounting bolt, then detach the rear brake hose bracket fastener, allowing the hose to hang freely. Slowly lower the floor jack until each spring can be removed from its seat, and then take out the lower spring seat insulator. For installation, place the lower spring seat insulator onto the spring seat, insert the spring between the upper seat in the body and the lower seat on the axle beam, and use the jack to raise the axle beam and compress the spring until the shock absorber lower mounting bolts can be installed without tightening them yet. Connect the Panhard rod to the chassis and install the bolt without tightening it. The remainder of the installation follows the reverse order of removal. Lower the vehicle to the floor and, with the full weight on the wheels, tighten the shock absorber lower mounting bolts and the Panhard rod bolt to the specified torque values. For models from 2006 and later, support the lower control arm with a floor jack under the coil spring area, loosen the lower control arm-to-subframe nut/pivot bolt, and unbolt the lower control arm from the rear knuckle. Support the lower control arm with a floor jack placed underneath the spring seat, then carefully lower the arm until the spring can be removed from the seat. Inspect the coil spring for chips and distortion, checking the insulators for deterioration and replacing parts as necessary. Installation is the reverse of removal; raise the lower control arm with the floor jack to simulate normal ride height, then tighten the lower control arm fasteners and the lug nuts to the specified torque. The control arm bolt/nut should be tightened with the vehicle at normal ride height, which can be achieved after assembly by lowering the vehicle to the ground and bouncing it a few times, or by simulating normal ride height with the floor jack.

Genuine Kia Sedona Coil Springs

Strut Spring

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Coil Springs found

View related parts

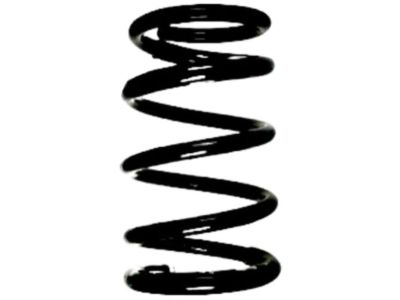

Kia Sedona Rear Coil Spring
Part Number: 553504D100
$143.14 MSRP: $198.80
You Save: $55.66 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring-Rear
- Position: Rear
- Replaced by: 553504D201DS
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Long - 7P, Wagon Long 7
View related parts

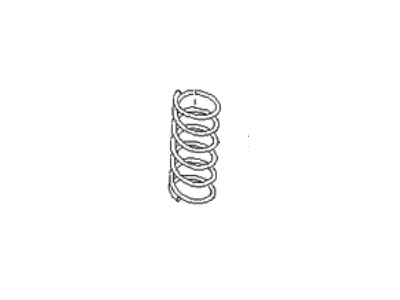

Kia Sedona Rear Springs
Part Number: 553504D101
$143.14 MSRP: $198.80
You Save: $55.66 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring-Rear
- Position: Rear
- Replaced by: 553504D201DS
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | 3.5L - Lambda 2, 3.8L - Lambda | Wagon Long - 7P
View related parts
Kia Sedona Rear Springs
Part Number: 553504D251
$129.08 MSRP: $179.28
You Save: $50.20 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring-Rear
- Position: Rear
- Replaced by: 553504D051DS
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | 3.8L - Lambda | Wagon Short - 7P
View related parts
Kia Sedona Front Coil Spring
Part Number: 0K52Y34011C
$121.57 MSRP: $168.85
You Save: $47.28 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring-Coil,Front
- Position: Front
- Replaced by: 0K52Y34011CDS
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Front Spring
Part Number: 546304D100
$140.62 MSRP: $195.30
You Save: $54.68 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring-Front
- Position: Front
- Replaced by: 546304D100DS
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Long - 7P, Wagon Long 7, Wagon Short - 7P, Wagon Short 7
View related parts
Kia Sedona Rear Coil Spring
Part Number: 55350A9110
$151.37 MSRP: $220.33
You Save: $68.96 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring-Rear; Coil Spring, Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Front Spring
Part Number: 54630A9110
$137.30 MSRP: $199.85
You Save: $62.55 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring-Front; Coil Spring, Spring
- Position: Front
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Rear Springs
Part Number: 55350A9511
$144.98 MSRP: $211.03
You Save: $66.05 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring-Rear; Coil Spring, Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2019-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Coil Spring
Part Number: 463304G100
$2.58 MSRP: $3.50
You Save: $0.92 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring-Coil
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2019-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Front Coil Spring
Part Number: 0K52Y34011B
$118.29 MSRP: $161.60
You Save: $43.31 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring-Coil,Front
- Position: Front
- Replaced by: 0K52Y34011BDS
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Front Spring
Part Number: 54630A9140
$134.17 MSRP: $195.30
You Save: $61.13 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring-Fr; Coil Spring, Spring
- Position: Front
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2019-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Rear Springs
Part Number: 55350A9111
$149.96 MSRP: $218.28
You Save: $68.32 (32%)
ADD TO CART
Product Specifications
- Other Name: Spring-Rear; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Rear Springs
Part Number: 553504D250
$129.08 MSRP: $179.28
You Save: $50.20 (28%)
Product Specifications
- Other Name: Spring-Rear
- Position: Rear
- Replaced by: 553504D051DS
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Short - 7P, Wagon Short 7
View related parts
Kia Sedona Rear Coil Spring
Part Number: 0K52Y28010A
Product Specifications
- Other Name: Spring-Rear
- Position: Rear
- Replaced by: 0K52Y28010ADS
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Rear Springs
Part Number: 4568639801
Product Specifications
- Other Name: Spring-Reduction Brake ; Spring-Coil
- Position: Rear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.8L, 3.8L - Lambda | Wagon Long - 7P, Wagon Long 7, Wagon Short - 7P, Wagon Short 7

Kia Sedona Coil Springs

Kia Sedona Coil Springs have the role of keeping this minivan level. They also make it soak up bumps to keep passengers a steady ride. When one of these Coil Springs loses strength, the van can sag at a corner, scrape the pavement, or wear tires unevenly because ride height and alignment can be altered. Engineers indicate the free length and spring rate of each spring, which are the two important measurements that allow Kia to balance comfort and control. Sedona models have had three main styles of Coil Springs, each with a distinct tuning for a different handling objective. Linear-rate versions use evenly spaced coils which provide a uniform feel through the entire travel of the suspension. Progressive designs have a soft start then stiffen as the tightly wound coils close up to help the Sedona resist bottoming, body roll, dive, and squat while gliding over small bumps. Dual-rate springs provide the van with two distinct stages of stiffness, which allows the van to provide a clearer separation between cruising compliance and load-carrying firmness. These Coil Springs options allow Kia owners to pick and choose whether to serve daily errands or heavy family trips with equal poise. For drivers who desired a custom stance, some editions of the Kia Sedona accepted lowering or adjustable Coil Springs that changed the ride height without needing to replace other components.

If you're in search of top-notch, reasonably priced OEM Kia Sedona Coil Springs, then you've found the perfect spot. Our website boasts an extensive inventory of Kia Sedona Coil Springs, all priced at the market's premier price. Rest assured, every genuine part we offer comes with a warranty straight from the manufacturer.

Kia Sedona Coil Springs Parts Questions & Experts Answers

Rear Coil Spring
553504D100
Q: How should you raise and support a Kia Sedona to remove and install rear Coil Springs?
A:
Raise the vehicle and support it securely on jackstands, blocking the front tires to prevent movement. For models from 2005 and earlier, place a floor jack under the axle beam and raise it slightly. Remove the Panhard rod-to-chassis bolt and the Shock Absorber lower mounting bolt, then detach the rear brake hose bracket fastener, allowing the hose to hang freely. Slowly lower the floor jack until each spring can be removed from its seat, and then take out the lower spring seat insulator. For installation, place the lower spring seat insulator onto the spring seat, insert the spring between the upper seat in the body and the lower seat on the axle beam, and use the jack to raise the axle beam and compress the spring until the shock absorber lower mounting bolts can be installed without tightening them yet. Connect the Panhard rod to the chassis and install the bolt without tightening it. The remainder of the installation follows the reverse order of removal. Lower the vehicle to the floor and, with the full weight on the wheels, tighten the shock absorber lower mounting bolts and the Panhard rod bolt to the specified torque values. For models from 2006 and later, support the lower Control Arm with a floor jack under the coil spring area, loosen the lower control arm-to-subframe nut/pivot bolt, and unbolt the lower control arm from the rear knuckle. Support the lower control arm with a floor jack placed underneath the spring seat, then carefully lower the arm until the spring can be removed from the seat. Inspect the coil spring for chips and distortion, checking the insulators for deterioration and replacing parts as necessary. Installation is the reverse of removal; raise the lower control arm with the floor jack to simulate normal ride height, then tighten the lower control arm fasteners and the lug nuts to the specified torque. The control arm bolt/nut should be tightened with the vehicle at normal ride height, which can be achieved after assembly by lowering the vehicle to the ground and bouncing it a few times, or by simulating normal ride height with the floor jack.
