Is the steering knuckle a repairable component, and How to remove and replace it if damaged on Kia Sedona?

The steering knuckle is not a repairable component and must be replaced if damaged. To remove it, first loosen the wheel lug nuts and the driveaxle/hub nut, then raise the vehicle and support it securely on jackstands. Next, remove the wheel, followed by the driveaxle/hub nut. After that, take off the brake disc and, if equipped, the ABS front wheel speed sensor. Detach the tie-rod end from the steering knuckle and separate the control arm balljoint from it. Remove the two strut-to-steering knuckle bolts, ensuring not to turn the serrated bolts during removal-only turn the nuts. Carefully remove the knuckle from the strut while pulling the driveaxle stub shaft out of the hub splines, taking care not to overextend the inner CV joint or allow the driveaxle to hang by it. If the driveaxle splines stick in the hub, use a puller to push the driveaxle out. For installation, follow the reverse of the removal procedure, tightening all suspension and brake fasteners to the specified torque. Finally, install the wheel, lower the vehicle, and tighten the lug nuts and driveaxle/hub nut to the specified torque, then have the front end alignment checked and adjusted if necessary.

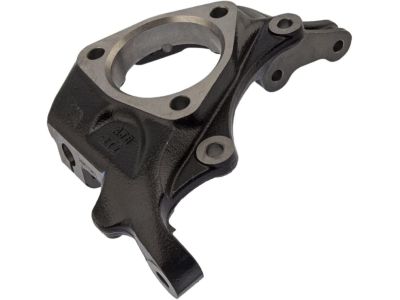

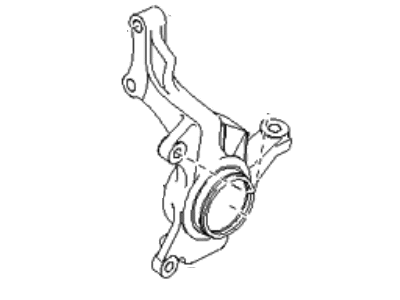

Genuine Kia Sedona Steering Knuckle

Front Steering Knuckle

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Steering Knuckles found

View related parts
Kia Sedona Front Axle Knuckle Left
Part Number: 51715A9000
$184.80 MSRP: $269.00
You Save: $84.20 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle-Front Axle,LH; Knuckle
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Front Axle Knuckle Right
Part Number: 517164D000
$199.21 MSRP: $289.97
You Save: $90.76 (32%)
ADD TO CART
Product Specifications
- Other Name: Knuckle-Front Axle,RH; Knuckle
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Long - 7P, Wagon Long 7, Wagon Short - 7P, Wagon Short 7
View related parts
Kia Sedona Front Axle Knuckle Left
Part Number: 517154D000
$199.21 MSRP: $289.97
You Save: $90.76 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle-Front Axle,LH; Knuckle
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Long - 7P, Wagon Long 7, Wagon Short - 7P, Wagon Short 7
View related parts
Kia Sedona Front Axle Knuckle Right
Part Number: 51716A9000
$231.42 MSRP: $338.93
You Save: $107.51 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle-Front Axle,RH; Knuckle
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Front Axle Knuckle Left
Part Number: 51715A9500
$226.27 MSRP: $329.37
You Save: $103.10 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: KNUCKLE-Front Axle,L; Knuckle
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2019-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Front Axle Knuckle Right
Part Number: 51716A9500
$229.30 MSRP: $335.82
You Save: $106.52 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle-Front Axle,R; Knuckle
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2019-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Knuckle, Right
Part Number: 0K56B33021
Product Specifications
- Other Name: KNUCKLE,RH; Knuckle
- Manufacturer Note: 00MY
- Position: Passenger Side
- Replaces: 0K56A33021
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Knuckle, Left
Part Number: 0K56B33031
Product Specifications
- Other Name: Knuckle,Lh; Knuckle
- Manufacturer Note: 00MY
- Position: Driver Side
- Replaces: 0K56A33031
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Front Spindle Knuckle
Part Number: 0K56A33031
Product Specifications
- Other Name: Knuckle,Lh
- Position: Driver Side
- Replaced by: 0K56B33031
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Knuckle, Right
Part Number: 0K56A33021
Product Specifications
- Other Name: KNUCKLE,RH
- Position: Passenger Side
- Replaced by: 0K56B33021
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7

Kia Sedona Steering Knuckle

The Kia Sedona Steering Knuckle is located at the crux of suspension, steering, and wheels and steers each wheel with strength and precision. The component connects control arms or a strut to the lower arm, accepts tie rod ends, and holds the hub or spindle; it allows the wheel to move up and down over bumps and pivot when the driver spins. This vital Steering Knuckle assembly must be balanced between being strong and being precisely machined. Over the years, there have been two major layouts of Kia Sedona assemblies, one for front wheel drive vans with the axle running through the knuckle to a pressed or bolted hub, and an earlier layout with the solid spindle built into the knuckle with tapered roller bearings. The drive hub type maintains bearings sealed within the hub, which makes service easy, while the spindle type Steering Knuckle uses external bearings that glide over the shaft and require careful preload. Each Steering Knuckle must remain dimensionally true as oval bores or damaged spindle threads loosen joints and require replacement. Despite high durability, the Kia calls for inspection every time joints or tie rods are changed in order to keep the Sedona Steering Knuckle safe, allowing every corner of the Kia Sedona to react confidently.

If you're in search of top-notch, reasonably priced OEM Kia Sedona Steering Knuckle, then you've found the perfect spot. Our website boasts an extensive inventory of Kia Sedona Steering Knuckle, all priced at the market's premier price. Rest assured, every genuine part we offer comes with a warranty straight from the manufacturer.

Kia Sedona Steering Knuckle Parts Questions & Experts Answers

Front Axle Knuckle Left
517154D000
Q: Is the steering knuckle a repairable component, and How to remove and replace it if damaged on Kia Sedona?
A:
The steering knuckle is not a repairable component and must be replaced if damaged. To remove it, first loosen the wheel lug nuts and the driveaxle/hub nut, then raise the vehicle and support it securely on jackstands. Next, remove the wheel, followed by the driveaxle/hub nut. After that, take off the brake disc and, if equipped, the ABS front wheel speed sensor. Detach the tie-rod end from the steering knuckle and separate the control arm balljoint from it. Remove the two strut-to-steering knuckle bolts, ensuring not to turn the serrated bolts during removal-only turn the nuts. Carefully remove the knuckle from the strut while pulling the driveaxle stub shaft out of the hub splines, taking care not to overextend the inner CV joint or allow the driveaxle to hang by it. If the driveaxle splines stick in the hub, use a puller to push the driveaxle out. For installation, follow the reverse of the removal procedure, tightening all suspension and brake fasteners to the specified torque. Finally, install the wheel, lower the vehicle, and tighten the lug nuts and driveaxle/hub nut to the specified torque, then have the front end alignment checked and adjusted if necessary.
