Cooling System fit your 2024 Kia EV9
Currently shopping for
2024 Kia EV9
Change VehicleVehicle Options
Electric - Electric; Electric - Electric; DeceleratorVehicle Options
Electric - Electric; Electric - Electric; DeceleratorCategories Close X
Currently selected
Engine(drive motor)
Other Categories
Body
Chassis
Electrical
Trim
How to use OE catalog
2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

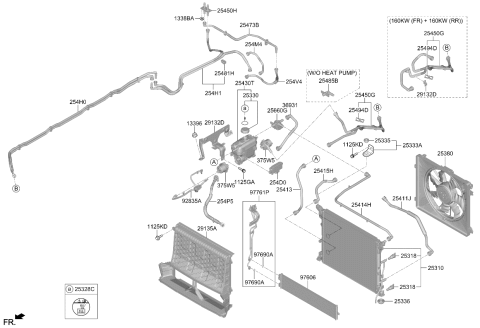

- 1.Cooling System (01/02)

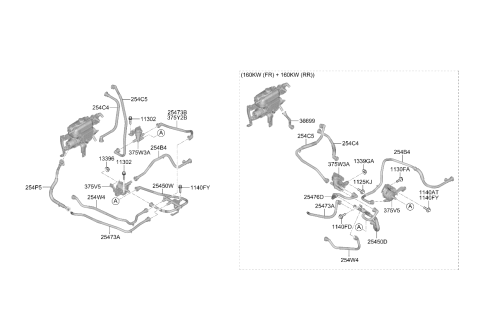

- 2.Cooling System (02/02)
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 3WAY Valve Assembly-Battery Cooling375W3A
375W3KL000
3WAY Valve Assembly-Battery Cooling- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW]
$328.87 $225.931 - 375W3A375W3KL200
3WAY Valve Assembly-Battery Cooling- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)]
- Replaced By: 25660XG400
$129.08 $89.451
- 25660G
$1085.70 $736.101
- 25380
$758.52 $514.271
- 1125KD
1125406256B
Bolt- Fit Note: FRONT CORNER LIDAR
- Require Quantity: 4
- Package Quantity: 10
- Replaced By: 1125406256K
$2.08 $1.5410
- 1130FA$2.15 $1.591
- 1140AT
$1.38 $0.971
- 1140FD
$2.60 $1.925
- Bolt1140FY
1140306146K
Bolt- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)]
$0.62 $0.435 - 1140FY1140306146K
Bolt- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW]
- Require Quantity: 2
- Package Quantity: 5
$0.62 $0.435
- 11302$0.97 $0.681
- 1125GA
1125406306B
Bolt(W/Washer)- Fit Note: HEAT PUMP
INNER CONDENSER HVAC - Require Quantity: 2
- Package Quantity: 1
$1.43 $1.001 - Fit Note: HEAT PUMP
- 1125KJ$9.75 $6.821
- Bracket29132D29132DO000
Bracket- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)]
$19.67 $13.751 - 29132D
29132DO100
Bracket- Fit Note: HEAT PUMP
INNER CONDENSER HVAC - Fitting Vehicle Options: [Wagon - 5Door 6P]> [Motor - 160KW (Front) + 160KW (Rear)], [Wagon - 5Door 6P]> [Motor - 160KW], [Wagon - 5Door 7P]> [Motor - 160KW (Front) + 160KW (Rear)], [Wagon - 5Door 7P]> [Motor - 160KW]
$87.57 $60.681 - Fit Note: HEAT PUMP
- 25333A
$18.87 $13.191
- 25330
$29.70 $20.761
- 25481H$6.47 $4.521
- 25494D$11.87 $8.291
- 97606
97606KL000
Condenser Assy-Cooler- Fit Note: BLOWER CONTROL TYPE - BLDC MOTOR PWM TYPE
REFRIGERATOR - ALTERNATIVE
$614.87 $419.831
- 25485B
$30.60 $21.391
- Driver-Coolant Hub254D0
$131.63 $91.221 - 254D0
$220.18 $151.271

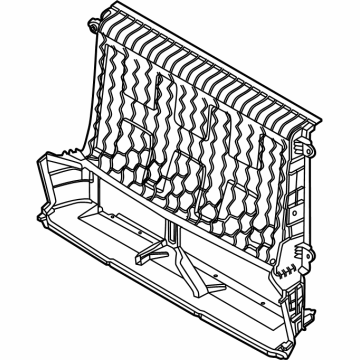

- 29135A
$162.77 $112.801
- 254H0
$316.02 $217.101
- Hose Assembly-Chiller Inlet254C4
254C4DO700
Hose Assembly-Chiller Inlet- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW]
$57.07 $39.551 - 254C4
254C4DO750
Hose Assembly-Chiller Inlet- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)]
$57.07 $39.551
- Hose Assembly-Chiller Outlet254C5
254C5DO500
Hose Assembly-Chiller Outlet- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW]
$63.43 $43.961 - 254C5254C5DO550
Hose Assembly-Chiller Outlet- Fit Note: BATTERY HEATING SYSTEM
- Production Date: 09/2023-11/2023
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)]
$73.63 $51.031 - 254C5
254C5DO551
Hose Assembly-Chiller Outlet- Fit Note: BATTERY HEATING SYSTEM
- Production Date: 11/2023-10/2024
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)]
$72.97 $50.571
- Hose Assembly-Condenser Inlet254W4
254W4DO500
Hose Assembly-Condenser Inlet- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW]
$89.38 $61.941 - 254W4
254W4DO550
Hose Assembly-Condenser Inlet- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)]
$70.53 $48.881
- 254P5
$113.27 $78.491
- Hose Assembly-High Voltage Battery Inlet254B4
254B4DO500
Hose Assembly-High Voltage Battery Inlet- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW]
$140.35 $97.261 - 254B4
254B4DO550
Hose Assembly-High Voltage Battery Inlet- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)]
$140.35 $97.261

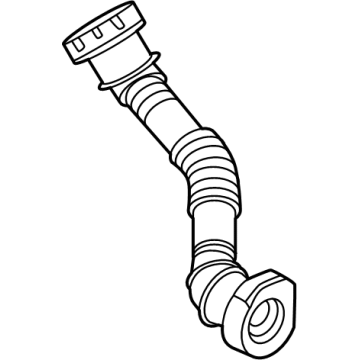

- 254V4$73.95 $51.251
- 254M4
$59.93 $41.531
- 254H1
$227.18 $156.071
- 25415H
$47.87 $33.171
- 25414H
$102.22 $70.841
- 25450D
$158.97 $110.161
- Hose Assy-Water25450G
$185.93 $127.741 - 25450G25450DO050
Hose Assy-Water- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)]
$207.73 $142.711
- 25450H
$40.50 $28.311
- 25450W
$185.93 $127.741
- 375Y2B
$97.88 $67.831
- 36699
$49.98 $34.641
- 25411J
$67.50 $46.781
- 25413
$50.55 $35.031
- 36931
$89.48 $62.011
- 25336
$17.13 $11.981
- 25335
$8.02 $5.601
- 25328C
$11.47 $8.021
- Nut1338BA
1338606007K
Nut- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)], [Motor - 160KW]
- Require Quantity: 4
- Package Quantity: 5
$3.27 $2.285 - 1338BA$3.27 $2.285
- 1339GA
$0.47 $0.3310
- 13396
$0.87 $0.611
- 97690A
9769034310
O-Ring- 5/16 INCH
- Fit Note: BLOWER CONTROL TYPE - BLDC MOTOR PWM TYPE
REFRIGERATOR - ALTERNATIVE - Require Quantity: 2
- Package Quantity: 5
$2.65 $1.855
- 97761P
97761DO000
Pipe & Tube Assy- Fit Note: BLOWER CONTROL TYPE - BLDC MOTOR PWM TYPE
REFRIGERATOR - ALTERNATIVE
$209.57 $143.971
- 25318
253183K100
Plug-Radiator Drain- Fit Note: BLOWER CONTROL TYPE - BLDC MOTOR PWM TYPE
REFRIGERATOR - ALTERNATIVE - Require Quantity: 2
- Package Quantity: 1
$3.82 $2.671
- 25310
25310DO050
Radiator Assy- Fit Note: BLOWER CONTROL TYPE - BLDC MOTOR PWM TYPE
REFRIGERATOR - ALTERNATIVE
$561.30 $383.261
- 25430T
$118.22 $81.921
- Tube-Feed25473A
$77.23 $53.521 - 25473A
25473DO550
Tube-Feed- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)]
$52.68 $36.511
- 25473B
$118.03 $81.801
- 25476D
$82.85 $57.421
- Water Pump Assy-Electric375V5
375V5GI000
Water Pump Assy-Electric- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW]
$440.03 $300.451 - 375V5375V5GI200
Water Pump Assy-Electric- Fit Note: BATTERY HEATING SYSTEM
- Fitting Vehicle Options: [Motor - 160KW (Front) + 160KW (Rear)]
$572.67 $391.021
- 375W5
256W0DO000
Water Pump Assy-Electric- Fit Note: HEAT PUMP
INNER CONDENSER HVAC - Require Quantity: 2
- Package Quantity: 1
$181.25 $124.521 - Fit Note: HEAT PUMP
- Wiring & Connector Assembly92835A
$208.53 $143.261 - 92835A$290.83 $199.801
Genuine Kia Parts, the Right Choice
KiaPartsNow.com offers the wholesale prices for genuine 2024 Kia EV9 parts. Parts like Cooling System are shipped directly from authorized Kia dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: Motor - 160KW, Motor - 160KW (Front) + 160KW (Rear). Body: Wagon - 5Door 6P, Wagon - 5Door 7P.
