How to replace a condenser in an A/C system on Kia Sedona?

When replacing entire components, additional refrigerant oil must be added equal to the amount that is removed with the component being replaced. Read the label on the oil container to verify that it is compatible with the R-134a system before adding any of it to the system. If the condenser is being replaced because of damage (cracked or punctured), the receiver-drier should also be replaced. Have the system discharged and the refrigerant recovered by an air conditioning technician. Disconnect the cable from the negative battery terminal. Remove the radiator. Disconnect the refrigerant lines from the block at the right front corner of the engine compartment. Remove the mounting nuts and disconnect the refrigerant lines. Plug all open fittings to prevent entry of dirt and moisture. Carefully pull straight up to release the condenser from the lower clips, then remove the condenser from the vehicle. Installation is the reverse of removal. Make certain to fully seat the condenser into the mounting clips and retainers. Install new O-rings onto the line fittings and lightly coat them with refrigerant oil. Only use O-rings that are designed specifically for A/C system applications. If you are replacing the condenser with a new unit, add 1.7-ounce (50 ml) of refrigerant oil to the replacement. Have the system evacuated, recharged and leak tested by the shop that discharged it.

Genuine Kia Sedona A/C Condenser

Air Conditioning Condenser

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 A/C Condensers found

View related parts

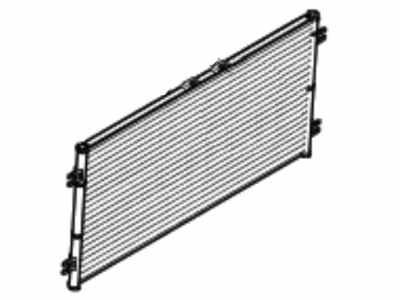

Kia Sedona Condenser Assembly-Cooler
Part Number: 97606A9000
$547.89 MSRP: $808.10
You Save: $260.21 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 97606A9001
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Condenser Assembly-Cooler
Part Number: 97606A9200
$567.12 MSRP: $836.47
You Save: $269.35 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: CONDENSER Assembly-COOLE; Condenser, Condenser Assembly
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2019-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Condenser Assembly-Cooler
Part Number: 976064D970
$551.98 MSRP: $789.67
You Save: $237.69 (31%)
ADD TO CART
Product Specifications
- Replaced by: 976064D900
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | 3.5L - Lambda 2 | Wagon Long - 7P, Wagon Short - 7P
View related parts
Kia Sedona Condenser Assembly
Part Number: 976064D900
$535.39 MSRP: $789.67
You Save: $254.28 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser
- Replaces: 976064D970
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Long - 7P, Wagon Long 7, Wagon Short - 7P, Wagon Short 7
View related parts
Kia Sedona Main-Condenser
Part Number: 1K52Y61E01
$417.59 MSRP: $587.34
You Save: $169.75 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly
- Replaced by: 1K52Y61E01C
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Main-Condenser
Part Number: 1K52Y61E01A
$417.59 MSRP: $587.34
You Save: $169.75 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assembly
- Replaced by: 1K52Y61E01C
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Main-Condenser
Part Number: 1K52Y61E01B
$417.59 MSRP: $587.34
You Save: $169.75 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 1K52Y61E01C
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Main-Condenser
Part Number: 1K52Y61E01C
$401.03 MSRP: $587.34
You Save: $186.31 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser, Condenser Assembly
- Replaces: 1K52Y61E01A, 1K52Y61E01B, 1K52Y61E01
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Condenser Assembly-Cooler
Part Number: 97606A9001
$547.89 MSRP: $808.10
You Save: $260.21 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser, Condenser Assembly
- Replaces: 97606A9000
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P

Kia Sedona A/C Condenser

Kia Sedona A/C Condenser is one of the most important and significant automotive parts which is crucial for proper functionality of a climate control system. Located at the front part of the car directly in front of the radiator, the role of A/C Condenser is to cool the gaseous refrigerant where it changes back to the liquid form before it gets to the accumulator. This process is crucial for regulating the internal cabin temperature and this is especially important in hot climates. The Kia Sedona A/C Condenser fits different models of ranging from the first to the third generation Sedona. Often association with dependability the A/C Condenser exhibits additional efficiency to the Sedona resulting in improved performance of the vehicle. Also, the role of the A/C Condenser remains prevalent in safety aspects since it helps avoid over-heating and maintaining a good temperature for the engine. The A/C Condenser is characterized by the high durability of construction and heat exchange functions among the automotive vehicles. Owing to the objective to maintain the same rates of cooling, the Kia Sedona A/C Condenser is not only contributes to the comfort of a passenger, but also to the vehicle's functionality as well. In conclusion, the discussed Kia Sedona A/C Condenser is one of the key components that stress Kia's dedication to the improved quality, and it is the essential factor that reveals why the car owners are to be proud to own Kia Sedona.

If you're in search of top-notch, reasonably priced OEM Kia Sedona A/C Condenser, then you've found the perfect spot. Our website boasts an extensive inventory of Kia Sedona A/C Condenser, all priced at the market's premier price. Rest assured, every genuine part we offer comes with a warranty straight from the manufacturer.

Kia Sedona A/C Condenser Parts Questions & Experts Answers

Main-Condenser
1K52Y61E01C
Q: How to replace a condenser in an A/C system on Kia Sedona?
A:
When replacing entire components, additional refrigerant oil must be added equal to the amount that is removed with the component being replaced. Read the label on the oil container to verify that it is compatible with the R-134a system before adding any of it to the system. If the condenser is being replaced because of damage (cracked or punctured), the receiver-drier should also be replaced. Have the system discharged and the refrigerant recovered by an air conditioning technician. Disconnect the cable from the negative battery terminal. Remove the Radiator. Disconnect the refrigerant lines from the block at the right front corner of the engine compartment. Remove the mounting nuts and disconnect the refrigerant lines. Plug all open fittings to prevent entry of dirt and moisture. Carefully pull straight up to release the condenser from the lower clips, then remove the condenser from the vehicle. Installation is the reverse of removal. Make certain to fully seat the condenser into the mounting clips and retainers. Install new O-rings onto the line fittings and lightly coat them with refrigerant oil. Only use O-rings that are designed specifically for A/C system applications. If you are replacing the condenser with a new unit, add 1.7-ounce (50 ml) of refrigerant oil to the replacement. Have the system evacuated, recharged and leak tested by the shop that discharged it.
