How to replace a Brake Pad Set, inspect the brake disc, handle brake fluid, and reassemble the caliper on Kia Sedona?

The procedure applies to both the front and rear disc brakes. Begin by removing the cap from the brake fluid reservoir. Loosen the wheel lug nuts, raise the front or rear of the vehicle, and support it securely on jackstands, blocking the wheels at the opposite end. Remove the wheels and work on one brake assembly at a time, using the assembled brake for reference if necessary. Inspect the brake disc carefully; if machining is needed, remove the disc to also take out the pads. Push the piston back into its bore to create space for the new brake pads, using a large C-clamp between the outer brake pad and the back of the caliper to slowly depress the piston. As the piston is pushed down, the fluid in the master cylinder will rise, so ensure it doesn't overflow and siphon off some fluid if necessary. Always wash the brakes with brake cleaner before disassembling anything. When reinstalling the caliper, tighten the mounting bolts to the specified torque. After completing the job, firmly depress the brake pedal a few times to bring the pads into contact with the disc, check the brake fluid level, adding some if needed, and carefully check the operation of the brakes before placing the vehicle into normal service.

Genuine Kia Sedona Brake Pad Set

Disc Brake Pad Set

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Brake Pad Sets found

View related parts
Kia Sedona Rear Disc Brake Pad Kit
Part Number: 58302A9A00
$93.67 MSRP: $135.17
You Save: $41.50 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit-Rear Disc Brake; Brake Pads, Rear Pads
- Position: Rear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Front Disc Brake Pad Kit
Part Number: 58101A9A00
$96.88 MSRP: $139.80
You Save: $42.92 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit-Front Disc Brake; Brake Pads, Front Pads
- Position: Front
- Replaced by: 58101A9A30
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Rear Disc Brake Pad Kit
Part Number: 583024DU02
$78.05 MSRP: $112.64
You Save: $34.59 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit-Rear Disc Brake; Brake Pads, Rear Pads
- Position: Rear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Long - 7P, Wagon Long 7, Wagon Short - 7P, Wagon Short 7
View related parts
Kia Sedona Front Disc Brake Pad Kit
Part Number: 581014DA60
$96.89 MSRP: $139.82
You Save: $42.93 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit-Front Disc Brake; Brake Pads, Front Pads
- Position: Front
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | 3.5L - Lambda 2, 3.8L - Lambda | Wagon Long - 7P, Wagon Short - 7P
View related parts
Kia Sedona Pad Set-Front
Part Number: 0K52Y3323Z
$80.75 MSRP: $116.52
You Save: $35.77 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit-Front Brake; Brake Pads, Pads
- Position: Front
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Pad Kit-Front Brake
Part Number: 581014DU00
$80.75 MSRP: $116.52
You Save: $35.77 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Brake Pads, Front Pads
- Position: Front
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Long - 7P, Wagon Long 7, Wagon Short - 7P, Wagon Short 7
View related parts
Kia Sedona Rear Disc Brake Pad Kit
Part Number: 583024DU01
$82.45 MSRP: $112.64
You Save: $30.19 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit-Rear Disc Brake
- Position: Rear
- Replaces: 583024DU00
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006 Kia Sedona | High Grade, Middle Grade | 3.8L | Wagon Long 7, Wagon Short 7
View related parts
Kia Sedona Rear Disc Brake Pad Kit
Part Number: 583024DU00
$82.45 MSRP: $112.64
You Save: $30.19 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit-Rear Disc Brake
- Position: Rear
- Replaced by: 583024DU01
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006 Kia Sedona | High Grade, Middle Grade | 3.8L | Wagon Long 7, Wagon Short 7
View related parts
Kia Sedona Pad Set-Front
Part Number: 4K52Y3323Z
Product Specifications
- Other Name: Pad Set,Front
- Position: Front
- Replaced by: 4K52Y3323ZFFF
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7

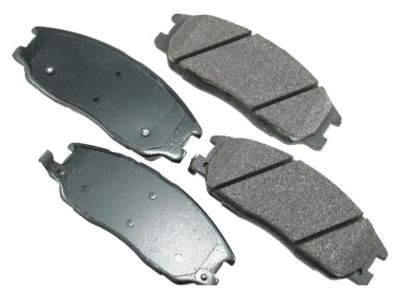

Kia Sedona Brake Pad Set

The essential safety advantage of the Kia Sedona Brake Pad Set is that it is able to convert the motion of the minivan to heat through friction to bring every trip under control to a stop. Built on a steel backing plate bonded to special lining, each Brake Pad Set clamps the rotor when the hydraulic caliper closes, which slows the wheels in a short time and is resistant to fade during normal driving. Over the years, the model has accommodated pads made with non-metallic mixes, semi-metallic blends, and newer ceramic formulas, and while the size remains the same, heat tolerance, dust output, and noise vary among them. Basic compounds deal with commuting, but heavy loads or long downhills can overheat a standard Brake Pad Set, while a ceramic Brake Pad Set keeps quiet and more stable in high heat. The use of wear sensors or squealer tabs alerts owners when thickness approaches the limit to install a new Brake Pad Set to prevent rotor damage, which would result in a loss of solid pedal feel in the Sedona. Regular cleaning, inspection, and quick repair of sticking calipers allow a Kia driver to see 20,000 to 40,000 miles per set, which saves money and keeps the Sedona ready for duty per the Kia maintenance schedule, while the spacious Sedona maintains the trusted Kia reputation.

If you're in search of top-notch, reasonably priced OEM Kia Sedona Brake Pad Set, then you've found the perfect spot. Our website boasts an extensive inventory of Kia Sedona Brake Pad Set, all priced at the market's premier price. Rest assured, every genuine part we offer comes with a warranty straight from the manufacturer.

Kia Sedona Brake Pad Set Parts Questions & Experts Answers

Rear Disc Brake Pad Kit
583024DU02
Q: How to replace a Brake Pad Set, inspect the brake disc, handle brake fluid, and reassemble the caliper on Kia Sedona?
A:
The procedure applies to both the front and rear disc brakes. Begin by removing the cap from the brake fluid reservoir. Loosen the wheel lug nuts, raise the front or rear of the vehicle, and support it securely on jackstands, blocking the wheels at the opposite end. Remove the wheels and work on one brake assembly at a time, using the assembled brake for reference if necessary. Inspect the Brake Disc carefully; if machining is needed, remove the disc to also take out the pads. Push the piston back into its bore to create space for the new brake pads, using a large C-clamp between the outer brake pad and the back of the caliper to slowly depress the piston. As the piston is pushed down, the fluid in the master cylinder will rise, so ensure it doesn't overflow and siphon off some fluid if necessary. Always wash the brakes with brake cleaner before disassembling anything. When reinstalling the caliper, tighten the mounting bolts to the specified torque. After completing the job, firmly depress the brake pedal a few times to bring the pads into contact with the disc, check the brake fluid level, adding some if needed, and carefully check the operation of the brakes before placing the vehicle into normal service.
