How to Install a Shift Cable in a Kia Sedona?

Cover the left fender and remove the air filter housing, battery and tray. Detach the shift cable from the bracket and lever, remove the front console, and take out the grommet fasteners. Pull out the cable from the passenger compartment. Install the shift cable into the engine compartment. Attach it to the shift lever stud and housing. Secure it with the mounting nut and bolt. Place the cable housing into the bracket and install the clip. Installation is the reverse of removal for the rest.

Genuine Kia Sedona Shift Cable

Transmission Shift Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Shift Cables found

View related parts

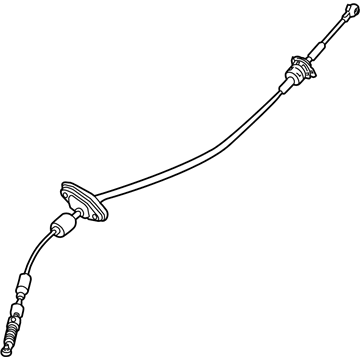

Kia Sedona Automatic Transmission Lever Shift Control Cable
Part Number: 467604D000
$89.82 MSRP: $122.70
You Save: $32.88 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Automatic Transmission Lever
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Long - 7P, Wagon Long 7, Wagon Short - 7P, Wagon Short 7
View related parts
Kia Sedona Automatic Transmission Lever Shift Control Cable
Part Number: 467604D020
$99.94 MSRP: $136.53
You Save: $36.59 (27%)
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Automatic Transmission Lever
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | 3.5L - Lambda 2, 3.8L - Lambda | Wagon Long - 7P, Wagon Short - 7P
View related parts
Kia Sedona Automatic Transmission Lever Shift Control Cable
Part Number: 46790A9500
$96.49 MSRP: $139.23
You Save: $42.74 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Atm Lever; Cable, Shift Control Cable
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2019-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Automatic Transmission Shift Control Cable
Part Number: 46790A9000
$100.69 MSRP: $145.30
You Save: $44.61 (31%)
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Automatic Transmission; Cable, Shift Control Cable
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Shift Control Cable
Part Number: 0K52Y46500B
Product Specifications
- Other Name: Cable Assembly-Shift Lock
- Replaced by: 0K52Y46500C
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Shift Control Cable
Part Number: 0K52Y46500C
Product Specifications
- Other Name: Cable Assembly-Control
- Replaces: 0K52Y46500B, 0K53H46500
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7

Kia Sedona Shift Cable

The Kia Sedona Shift Cable allows the driver to pick the gears confidently by establishing a solid connection between the cabin shifter and the transmission. In ordinary driving, this Shift Cable converts the movement of the lever into the movement of the gearbox so that Park, Reverse, Neutral, and Drive will slide smoothly. Earlier versions of the Sedona with manual gearboxes applied rods and levers, but the newer vans became configured with a Shift Cable arrangement that was lighter, sealed from dirt, and routed clean through the floorpan. Automatic versions have just a single Shift Cable to click into the familiar PRNDL pattern, but stick-shift versions may use a twin Shift Cable pair to move separate shift rails. For Kia, durability was important, so subsequent Sedona models had improved cable sheathing. Whichever one has the Shift Cable without stretch or breaks is vital because it can cause a sloppy feel or missed gears. Unlike electronic shift-by-wire units, the Kia system has a direct mechanical link, offering predictable feedback to Sedona owners and easy DIY replacement that's so prized by Kia fans.

If you're in search of top-notch, reasonably priced OEM Kia Sedona Shift Cable, then you've found the perfect spot. Our website boasts an extensive inventory of Kia Sedona Shift Cable, all priced at the market's premier price. Rest assured, every genuine part we offer comes with a warranty straight from the manufacturer.

Kia Sedona Shift Cable Parts Questions & Experts Answers

Automatic Transmission Lever Shift Control Cable
467604D000
Q: How to Install a Shift Cable in a Kia Sedona?
A:
Cover the left fender and remove the air filter housing, battery and tray. Detach the shift cable from the bracket and lever, remove the front console, and take out the grommet fasteners. Pull out the cable from the passenger compartment. Install the shift cable into the engine compartment. Attach it to the shift lever stud and housing. Secure it with the mounting nut and bolt. Place the cable housing into the bracket and install the clip. Installation is the reverse of removal for the rest.
