How to remove and install a water pump in Kia Sedona?

Disconnect the cable from the negative battery terminal. Remove the drivebelt and the alternator. Drain the engine coolant. For 2005 and earlier models, remove the liming belt cover. Remove the fittings to the water pump and water outlet, remove the thermostat housing-to-engine bolts, and remove the complete housing as a unit. Every sprocket must maintain its position on the timing belt or severe engine damage can occur! If the marks are not legible later, it will be necessary to follow the timing belt installation procedure to ensure correct alignment. The belt can be secured to the pulleys with plastic zip-ties or a similar device to prevent them from coming off. Paint each sprocket with alignment marks onto the liming belt so that the belt can be installed in exactly the same position. Remove the timing belt tensioner. DO NOT rotate the crankshaft with the timing belt removed! Unscrew the water pump fasteners and remove the water pump. If necessary, tap the pump loose with a soft-face hammer. Clean the water pump and block of any old gasket material or sealant, then clean with lacquer thinner. Install a new gasket and install the water pump. Install the water. For 2006 and later models, remove the water pump pulley mounting bolts and remove the pulley. Remove the water pump mounting bolts, then remove the pump and gaskets; it may be necessary to use a soft-face hammer to loosen the pump. Install a new gasket and install the water pump. Install the water pump bolls and nuts and tighten them to the torque. The remainder of installation is the reverse of removal. Refill the cooling system, then run the engine and check for leaks and proper operation.

Genuine Kia Sedona Water Pump

H2O Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Water Pumps found

View related parts

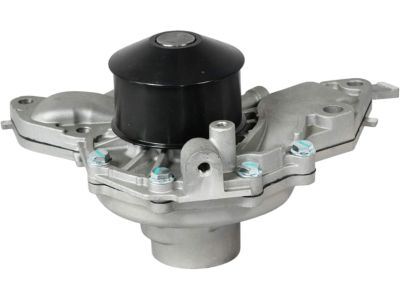

Kia Sedona Pump Assembly-COOLENT
Part Number: 251003C131
$139.06 MSRP: $202.42
You Save: $63.36 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Coolant; Water Pump
- Replaces: 251003C160, 251003C130, 251003C170
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2018 Kia Sedona | 3.3L - Lambda 2, 3.5L - Lambda 2, 3.8L - Lambda | Wagon Long - 7P, Wagon Long - 8P, Wagon Short - 7P
View related parts
Kia Sedona Pump Assembly-COOLENT
Part Number: 251003C120
$126.52 MSRP: $184.17
You Save: $57.65 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Coolant; Water Pump, Water Pump Assembly
- Replaced by: 251003C121
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | 3.5L - Lambda 2, 3.8L - Lambda | Wagon Long - 7P, Wagon Short - 7P
View related parts
Kia Sedona Pump Assembly-Water
Part Number: 251003C130
$139.06 MSRP: $202.42
You Save: $63.36 (32%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Coolant; Water Pump
- Replaced by: 251003C131
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | 3.5L - Lambda 2, 3.8L - Lambda | Wagon Long - 7P
View related parts
Kia Sedona Pump Assembly-Water
Part Number: 2510039012
$184.83 MSRP: $269.03
You Save: $84.20 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Coolant; Water Pump
- Replaces: 2510039010
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Pump Assembly-Coolant
Part Number: 251003C170
$145.74 MSRP: $202.42
You Save: $56.68 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 251003C131
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Pump Assembly-Coolant
Part Number: 251003C160
$145.74 MSRP: $202.42
You Save: $56.68 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 251003C131
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Pump Assembly-Water
Part Number: 2510039010
$184.83 MSRP: $269.03
You Save: $84.20 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Coolant
- Replaced by: 2510039012
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Pump Assembly-COOLENT
Part Number: 251003C100
$11.54 MSRP: $15.63
You Save: $4.09 (27%)
Product Specifications
- Other Name: Pump Assembly-Coolant
- Replaced by: 213553C510
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006 Kia Sedona | High Grade, Middle Grade | 3.8L | Wagon Long 7, Wagon Short 7

Kia Sedona Water Pump

Kia Sedona Water Pump helps prevent your engine temperatures from getting out of hand by pumping coolant through block and head passages then on to the radiator where heat is transferred to ambient air. Driven mostly by a belt from the crankshaft, this Water Pump uses a sealed shaft to ride in bearings, a pulley on the outside, and an impeller with the aluminum housing inside to avoid leaks but maintain flow. Earlier Sedona engines were equipped with heavier cast iron bodies, while preferred later Sedona versions are built with lighter aluminum and in some trims are equipped with an electric Water Pump, which pulls its power directly instead of taking its energy from the belt, reducing drag and increasing efficiency. Many Kia enthusiasts know that each Water Pump has one mission, non-stop circulation to avoid overheating. Common warnings of ill fortune include coolant dripping near the lower hose, grinding noises from worn bearings, or spikes on the temperature gauge when an impeller breaks. Timely proper Water Pump service helps to preserve the broader Kia cooling network and to assure dependable travel for any Kia driver of a hardworking Sedona.

If you're in search of top-notch, reasonably priced OEM Kia Sedona Water Pump, then you've found the perfect spot. Our website boasts an extensive inventory of Kia Sedona Water Pump, all priced at the market's premier price. Rest assured, every genuine part we offer comes with a warranty straight from the manufacturer.

Kia Sedona Water Pump Parts Questions & Experts Answers

Pump Assembly-COOLENT
251003C131
Q: How to remove and install a water pump in Kia Sedona?
A:
Disconnect the cable from the negative battery terminal. Remove the drivebelt and the alternator. Drain the engine coolant. For 2005 and earlier models, remove the liming belt cover. Remove the fittings to the water pump and water outlet, remove the thermostat housing-to-engine bolts, and remove the complete housing as a unit. Every sprocket must maintain its position on the timing belt or severe engine damage can occur! If the marks are not legible later, it will be necessary to follow the timing belt installation procedure to ensure correct alignment. The belt can be secured to the pulleys with plastic zip-ties or a similar device to prevent them from coming off. Paint each sprocket with alignment marks onto the liming belt so that the belt can be installed in exactly the same position. Remove the timing belt tensioner. DO NOT rotate the crankshaft with the timing belt removed! Unscrew the water pump fasteners and remove the water pump. If necessary, tap the pump loose with a soft-face hammer. Clean the water pump and block of any old gasket material or sealant, then clean with lacquer thinner. Install a new gasket and install the water pump. Install the water. For 2006 and later models, remove the water pump pulley mounting bolts and remove the pulley. Remove the water pump mounting bolts, then remove the pump and gaskets; it may be necessary to use a soft-face hammer to loosen the pump. Install a new gasket and install the water pump. Install the water pump bolls and nuts and tighten them to the torque. The remainder of installation is the reverse of removal. Refill the cooling system, then run the engine and check for leaks and proper operation.
