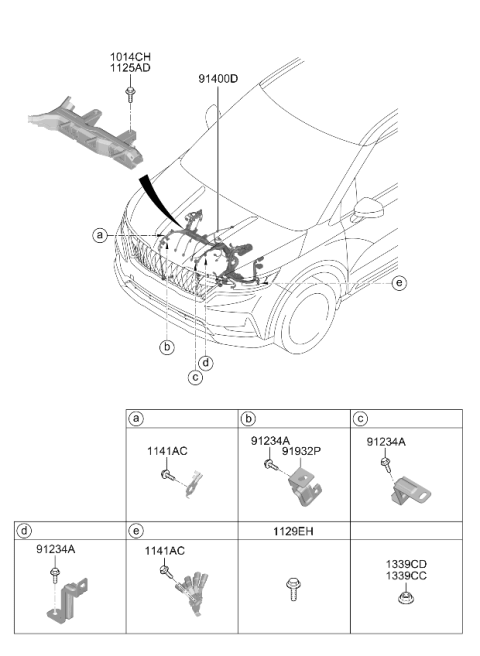

Diagram (1 of 1): Control Wiring
2022 Kia Carnival Control Wiring Diagram
Enlarge Diagram
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1014CH
    1127306207K
    Bolt
    • Require Quantity: 2
    • Package Quantity: 1
    $6.70 $4.94
    1
    Add To Cart
  • 1125AD
    Kia 1125406206B
    Kia 1125406206B
    1125406206B
    Bolt
    • Require Quantity: 2
    • Package Quantity: 10
    $1.70 $1.19
    10
    Add To Cart
  • 1129EH Kia 1129308166B
    1129308166B
    Bolt
    • Require Quantity: 2
    • Package Quantity: 1
    $0.87 $0.64
    1
    Add To Cart
  • Bolt
    1141AC Kia 1141306167C
    1141306167C
    Bolt
    • Production Date: 01/2021-07/2024
    • Require Quantity: 4
    • Package Quantity: 1
    $2.85 $1.99
    1
    Add To Cart
  • 1141AC Kia 1141306207C
    1141306207C
    Bolt
    • Production Date: 01/2021-07/2024
    • Require Quantity: 4
    • Package Quantity: 10
    $6.87 $5.07
    10
    Add To Cart
  • 91234A Kia 1127306167K
    1127306167K
    Bolt
    • Require Quantity: 13
    • Package Quantity: 1
    $6.50 $4.54
    1
    Add To Cart
  • 91932P
    91931R0060
    Bracket-Wiring Mounting
    • Fit Note: BUTTON START - BUTTON W/ ILLUMINATED
      CONVENTIONAL
      E-SHIFT FOR SBW
      EMISSION REGULATION - LEV-3 ULEV 70
      H-MATIC
      IMMOBILIZER
      MODEL YEAR PACKAGE - 22MY
      MODEL YEAR PACKAGE - 23MY
      SMART KEY-FR DR
      W/ S&G (WITH STOP AND GO)
    $16.85 $12.44
    1
    Add To Cart
  • Wiring Assy-Control
    91400D Kia 91410R0050
    91410R0050
    Wiring Assy-Control
    • Fit Note: BUTTON START - BUTTON W/ ILLUMINATED
      E-SHIFT FOR SBW
      IMMOBILIZER
      SMART KEY-FR DR
      W/ S&G (WITH STOP AND GO)
    • Production Date: 01/2021-03/2022
    $1632.82 $1107.05
    1
    Add To Cart
  • 91400D
    Kia 91410R0051
    91410R0051
    Wiring Assy-Control
    • Fit Note: BUTTON START - BUTTON W/ ILLUMINATED
      E-SHIFT FOR SBW
      EMISSION REGULATION - LEV-3 ULEV 70
      IMMOBILIZER
      MODEL YEAR PACKAGE - 22MY
      SMART KEY-FR DR
      W/ S&G (WITH STOP AND GO)
    • Production Date: 03/2022-07/2024
  • 91400D Kia 91410R0060
    91410R0060
    Wiring Assy-Control
    • Fit Note: BUTTON START - BUTTON W/ ILLUMINATED
      E-SHIFT FOR SBW
      IMMOBILIZER
      SMART KEY-FR DR
      W/ S&G (WITH STOP AND GO)
    • Production Date: 01/2021-03/2022
    $1519.97 $1062.46
    1
    Add To Cart
  • 91400D Kia 91410R0061
    91410R0061
    Wiring Assy-Control
    • Fit Note: BUTTON START - BUTTON W/ ILLUMINATED
      EMISSION REGULATION - LEV-3 ULEV 70
      H-MATIC
      IMMOBILIZER
      MODEL YEAR PACKAGE - 22MY
      MODEL YEAR PACKAGE - 23MY
      SMART KEY-FR DR
      W/ S&G (WITH STOP AND GO)
    • Production Date: 03/2022-07/2024
    $1632.82 $1141.34
    1
    Add To Cart
  • 91400D Kia 91410R0170
    91410R0170
    Wiring Assy-Control
    • Fit Note: BUTTON START - BUTTON W/ ILLUMINATED
      E-SHIFT FOR SBW
      IMMOBILIZER
      SMART KEY-FR DR
      W/ S&G (WITH STOP AND GO)
    • Production Date: 01/2021-03/2022
    $1484.37 $1006.40
    1
    Add To Cart
  • 91400D Kia 91410R0171
    91410R0171
    Wiring Assy-Control
    • Fit Note: BUTTON START - BUTTON W/ ILLUMINATED
      CONVENTIONAL
      EMISSION REGULATION - LEV-3 ULEV 70
      H-MATIC
      IMMOBILIZER
      MODEL YEAR PACKAGE - 22MY
      MODEL YEAR PACKAGE - 23MY
      SMART KEY-FR DR
    • Production Date: 03/2022-07/2024
    $1632.82 $1107.05
    1
    Add To Cart
  • 91400D
    91410R0491
    Wiring Assy-Control
    • Fit Note: BUTTON START - BUTTON W/ ILLUMINATED
      E-SHIFT FOR SBW
      EMISSION REGULATION - LEV-3 ULEV 70
      IMMOBILIZER
      MODEL YEAR PACKAGE - 24MY
      SMART KEY-FR DR
      W/ S&G (WITH STOP AND GO)
    • Production Date: 02/2023-07/2024
    $1632.82 $1107.05
    1
    Add To Cart
  • 91400D Kia 91410R0501
    91410R0501
    Wiring Assy-Control
    • Fit Note: BUTTON START - BUTTON W/ ILLUMINATED
      EMISSION REGULATION - LEV-3 ULEV 70
      H-MATIC
      IMMOBILIZER
      MODEL YEAR PACKAGE - 23MY
      MODEL YEAR PACKAGE - 24MY
      SMART KEY-FR DR
      W/ S&G (WITH STOP AND GO)
    • Production Date: 03/2022-07/2024
    $1484.37 $1006.40
    1
    Add To Cart
  • 91400D Kia 91410R0561
    91410R0561
    Wiring Assy-Control
    • Fit Note: BUTTON START - BUTTON W/ ILLUMINATED
      CONVENTIONAL
      EMISSION REGULATION - LEV-3 ULEV 70
      H-MATIC
      IMMOBILIZER
      MODEL YEAR PACKAGE - 23MY
      MODEL YEAR PACKAGE - 24MY
      SMART KEY-FR DR
    • Production Date: 03/2022-07/2024
    $1484.37 $1006.40
    1
    Add To Cart
