Question 1

What are the steps involved in the removal and installation of the intake manifold on Kia Sorento for V6 engine?

Accepted Answer

To begin the removal process, relieve the fuel system pressure and disconnect the cable from the negative terminal of the battery. Next, remove the engine cover. For 2006 and earlier models, disconnect the accelerator and cruise control cables. Proceed by removing the air inlet tube and air filter housing, then disconnect the PCV hose and the brake booster hose. Disconnect the ground strap, electrical connectors, and vacuum lines from the upper intake manifold, labeling each connector for correct reassembly, and pull the wiring harnesses aside. For 2006 and earlier models, clamp off the coolant lines to the throttle body and disconnect them; for 2007 and later models, drain the engine coolant and disconnect the heater hoses from the heater core tubes at the firewall. Remove the upper intake manifold support brackets and disconnect the electrical connectors and hoses to the throttle body, taking care to clamp off the coolant hoses before detaching them to prevent spillage. Disconnect the electrical connectors to the various sensors and move the harness out of the way, then remove the bolts mounting the upper intake manifold to the lower intake manifold. Drain the cooling system and disconnect the electrical connectors from the fuel injectors, also detaching the fuel line from the fuel rail while pulling the wiring harness aside. The intake manifold can be removed with the injectors and fuel rails in place or separately, depending on the work required. Disconnect any remaining components from the lower manifold, then remove the mounting bolts in reverse order of tightening, detaching the lower intake manifold from the engine without prying between the gasket mating surfaces to avoid damage. Check the manifold's surface with a precision straightedge and replace it if excessively deformed. For installation, use a scraper to remove old gasket material and sealant from the lower intake manifold and cylinder heads, cleaning the mating surfaces with brake system cleaner. Install new gaskets and position the lower intake manifold on the engine, ensuring the gaskets haven't shifted before installing and tightening the bolts in three or four equal steps to the specified torque. Install a new gasket between the lower and upper intake manifolds, place the upper intake manifold on the lower intake manifold, and tighten the bolts gradually to the specified torque. Finally, refill the cooling system, run the engine, and check for fuel, vacuum, and coolant leaks.

Question 2

What are the steps involved in the removal and installation of the intake manifold on Kia Optima for V6 engine?

Accepted Answer

Starting the process of removal, first, reduce the fuel system pressure, then unbolt the negative terminal of the battery. Subsequently, take off the engine cover together with its associated air intake duct assembly. Remove the PCV hose, ground strap, electrical connectors, and vacuum lines from the upper intake and place the connectors to the side with tape for identification to be reassembled later as Lift the wiring harnesses up and out of the way. It must also have all interfering hoses and harnesses properly labeled, and disconnected. Remove the hoses coming from the throttle body and wiring and detaching them, using pieces of hose clamp to minimize coolant leakage. Remove the upper intake manifold brace(s) bolts and the two bolts from EGR valve and pull it off. Know that there may be other brackets that may have to be detached; sort them together with their screws or bolts. The bolts fixing the upper intake manifold to the lower intake manifold should be loosened and the two components, separated. Remove the coolant from the radiator and pull the connectors off the fuel injectors, remove the hose from the fuel rail. The final part of the services during an engine rebuild or overhaul is to remove or leave the intake manifold together with the injectors and fuel rails. Unfasten any other connections to this lower component then remove the bolts in the sequence that was followed while tightening it then take off the lower intake manifold from the engine but do not pull it apart from the gasket. Look also at the surface of the manifold for sign of excessive deformation and for signs that replacement is needed. During installation, the gasket and sealant for the lower intake manifold and cylinder heads should be scraped off using a scraper after which the surface should be cleaned with brake system cleaner. New gaskets need to be fitted and the lower intake manifold needs to be placed on the engine, making sure that the gaskets are not out of place before tightening the bolts in a pattern either in 3/4 turns or alternately to the specified torque in the series. Put a new gasket on the lower intake manifold and put the upper one on, screw in the bolts, following the prescribed intensity and sequence. Lastly, replace the cooling system with a new one and if the lower intake manifold was removed coordinate to change the engine oil and engine oil filter. Proceed to the main step and start the engine to verify that there are no fuel or vacuum leaks and that the coolant level is at the right place.

Genuine Kia Intake Manifold

87 Intake Manifolds found

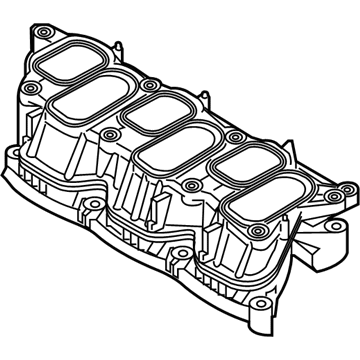

Kia Engine Intake Manifold

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Intake Manifold Assembly

Kia Manifold Assy-Intake

Kia Intake Manifold Assembly

About Kia Intake Manifold
